EtOH – Alcohol
$20.00
The 110-2xx family Ethanol sensors are small and low-profile, facilitating easy integration into wireless, portable, and other IoT solutions. These sensors are ideal for health, environmental, industrial, and residential monitoring, because of their high performance, low cost, and small size. IE’S Ethanol Sensor are available in three packages (110-202,110-205, 110-207).
F E A T U R E S
• Small Size & Low Profile (20 x 20 x 3 mm)
• Sensitive in the ppm range
• Accurate & Linear Response
• Long Life (10 +years)
• Fast Response
• 100% Factory Tested
• Ultra-Low Power < 50 uW max
• ROHS Compliant
A P P L I C A T I O N S
• Portable Breath Alcohol monitor
• Law Enforcement Breathalyzer
• Evidential Breath Alcohol Testing
• Portable Alcohol monitor
• Internet of Things
Sensor Element
Multiple Package Configurations Available
EtOH Sensor Family
EtOH Sensor
SPEC Sensor Operation Overview
SPEC AN-103 Power-On Stabilization
SPEC AN-104 Environmental Effects
SPEC AN-105 Selectivity and Cross-Sensitivity
SPEC AN-106 Gas Sampling and Material Considerations
SPEC AN-107 Characterization and Calibration
SPEC AN-108 Extreme Environment Operation
Additional information

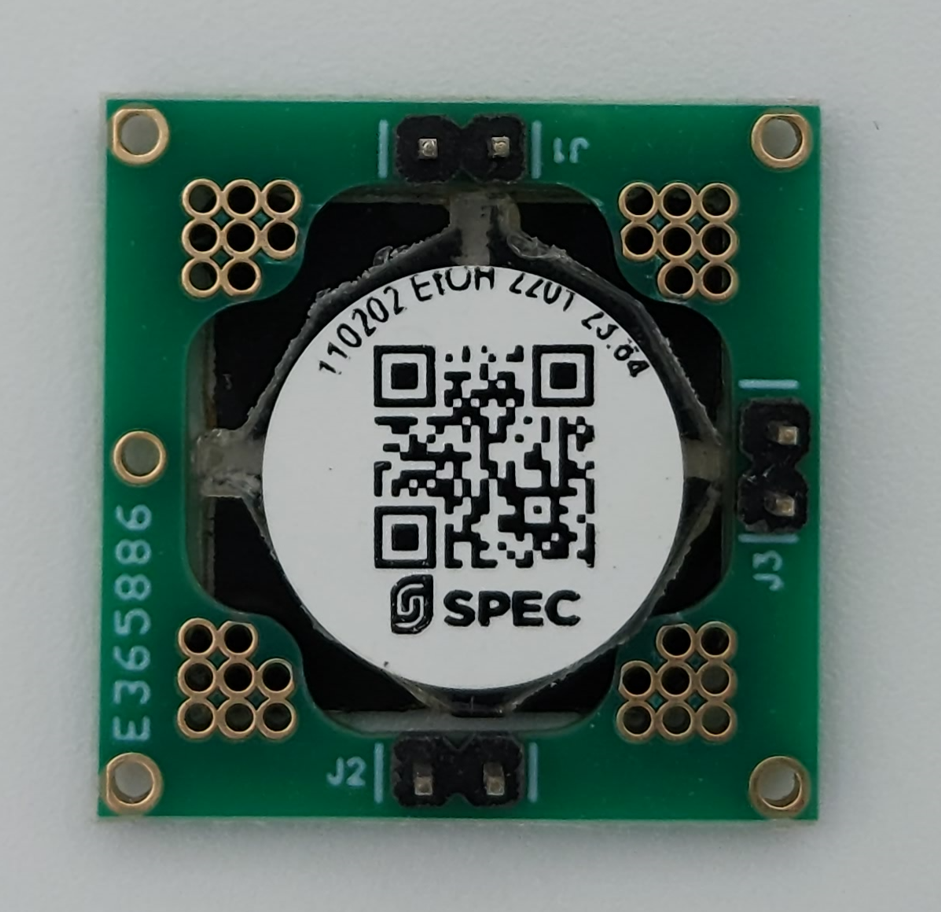

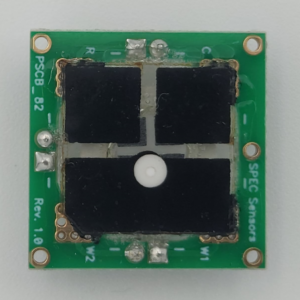

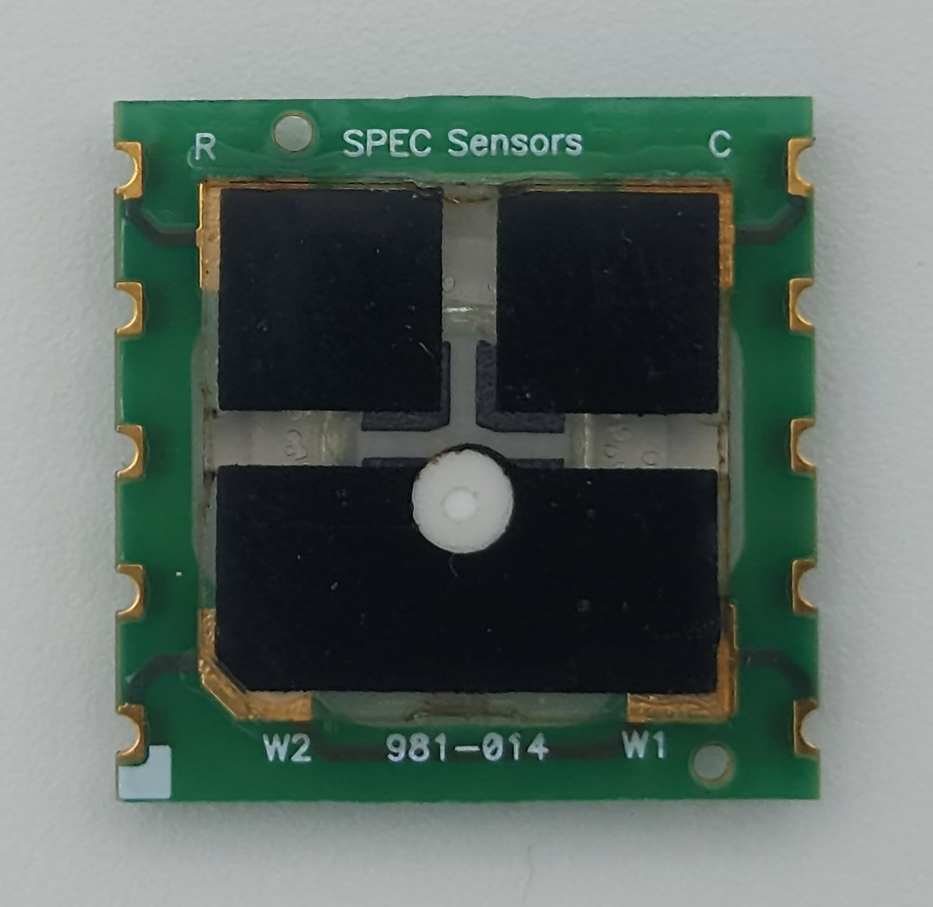

| Package | Pin-PCB, Thin Castellation PCB, Thick Castellation PCB |
|---|
