SO2 – Sulfur Dioxide
$20.00
The 110-6xx family Sulfur Dioxide sensors are small and low-profile, facilitating easy integration into wireless, portable, and other IoT solutions. These sensors are ideal for health, food, environmental, industrial, and residential monitoring, because of their high performance, low cost, and small size. IE’S Sulfur Dioxide Sensor are available in three packages (110-610, 110-611, 110-612).
F E A T U R E S
• Small Size & Low Profile
• Improved stability and low ppb sensitivity
• Accurate & Linear Response
• Long Life (10 +years)
• Fast Response
• 100% Factory Tested
• Ultra-Low Power < 50 uW max
• ROHS Compliant
A P P L I C A T I O N S
• Outdoor Air Quality
• Indoor Air Quality
• Weather Stations
• Internet of Things
• Smart Homes
• Industrial Safety

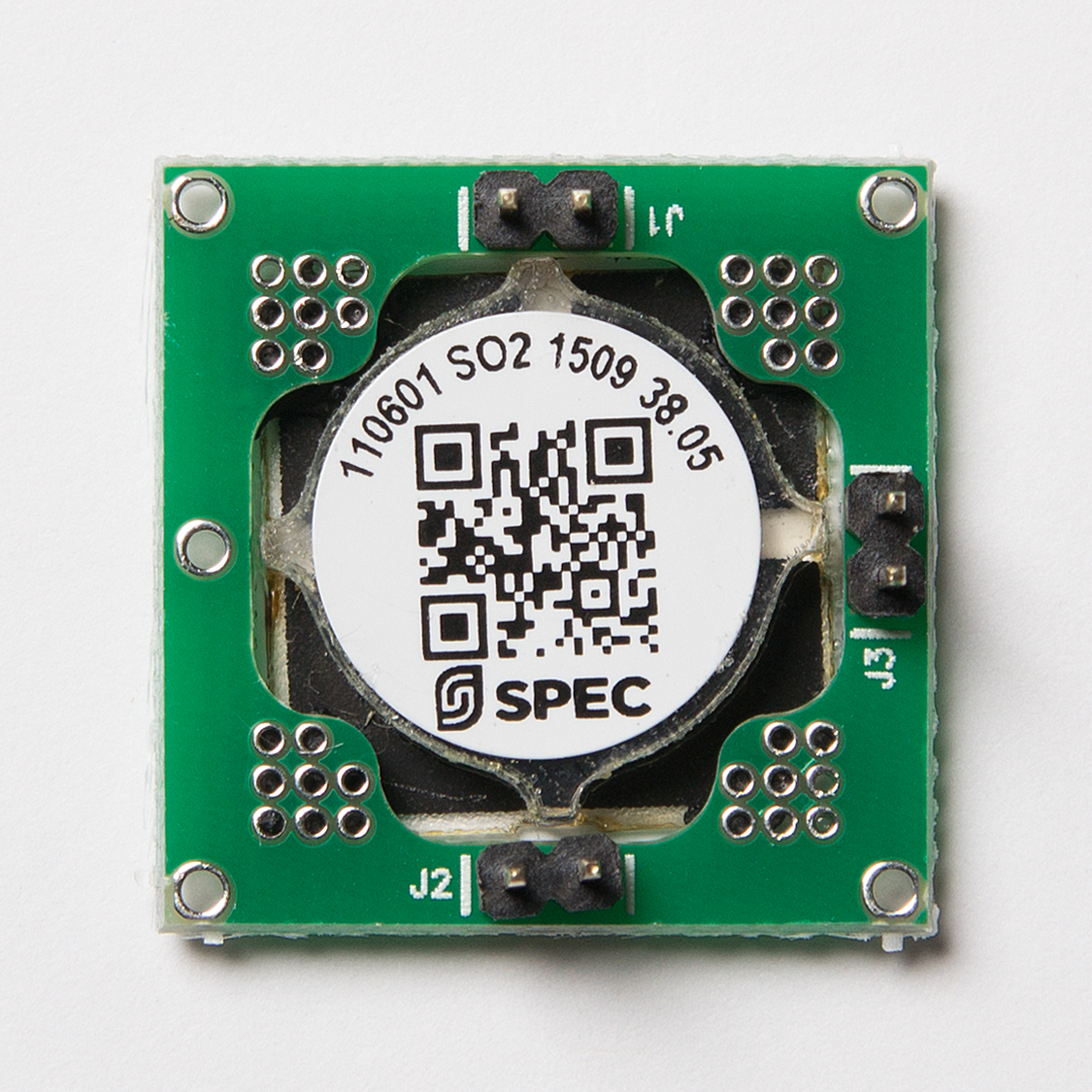

Sensor Element
Multiple Package Configurations Available
SO2 Sensor Family
Sulfur Dioxide Sensor
SPEC Sensor Operation Overview
SPEC AN-103 Power-On Stabilization
SPEC AN-104 Environmental Effects
SPEC AN-105 Selectivity and Cross-Sensitivity
SPEC AN-106 Gas Sampling and Material Considerations
SPEC AN-107 Characterization and Calibration
SPEC AN-108 Extreme Environment Operation
Additional information
| Package | Pin-PCB, Thin Castellation PCB, Thick Castellation PCB |
|---|
